Last time on "Soundcljoud gets more cloudy", I found myself deeply saddened that the eternal truths I was seeking in the music of Garth Brooks remained elusive due to my attempts to seek forward in a track were rebuffed by my browser, instead abruptly returning me to the beginning of the track. 😳
Appropriately chastened, I popped the bonnet and had a look at what my user agent was doing on my behalf. When I loaded a track, I saw a request like this:
GET /Garth+Brooks/Fresh+Horses/Garth+Brooks+-+The+Old+Stuff.mp3 HTTP/1.1
Range: bytes=0-
and a response like this:
HTTP/1.1 200 OK
Content-length: 5943424
Content-Type: audio/mpeg
Server: http-kit
with a bunch of bytes in the body. In fact, a bountiful buffet of beautiful bytes, five whole million of them! And another 943,424 thrown in for dessert.
Herein lies the rub. What the browser wants back is some indication that the server knows how to return a range of bytes, because the browser doesn't want to fetch the entire damned file every time the user starts playing a track. After all, the user might be trying to remember if the track entitled "The Old Stuff" contains the amazing homage to a "worn out tape of Chris LeDoux" (spoiler: it does not), and just listening to the first few seconds to determine this, then, disappointed, moving on to another track to sample the first few seconds of that one.
And how, you might ask, does the server indicate its range savviness? Well, according to our good friends over at the Mozilla Developer
Network, by returning a response such as this:
HTTP/1.1 206 Partial Content
Accept-Ranges: bytes
Content-length: 1048576
Content-Range: bytes 0-1048575/5943424
Content-Type: audio/mpeg
Whence ranges?
Let's refresh our memory a bit by firing up Soundcljoud:
cd ~/code/soundcljoud/player
bb dev
Now we can pop over to http://localhost:1341/, open up the soundcljoud.cljs in Emacs (or whatever inferior text editor you choose to inflict upon yourself), hit C-c l C (cider-connect-cljs) to start a REPL connected to localhost port 1339 (REPL type nbb), and finally evaluate load-ui! to get things going:
(comment
(load-ui! "http://localhost:1341/Garth+Brooks/Fresh+Horses")
;; => #<Promise[~]>
)

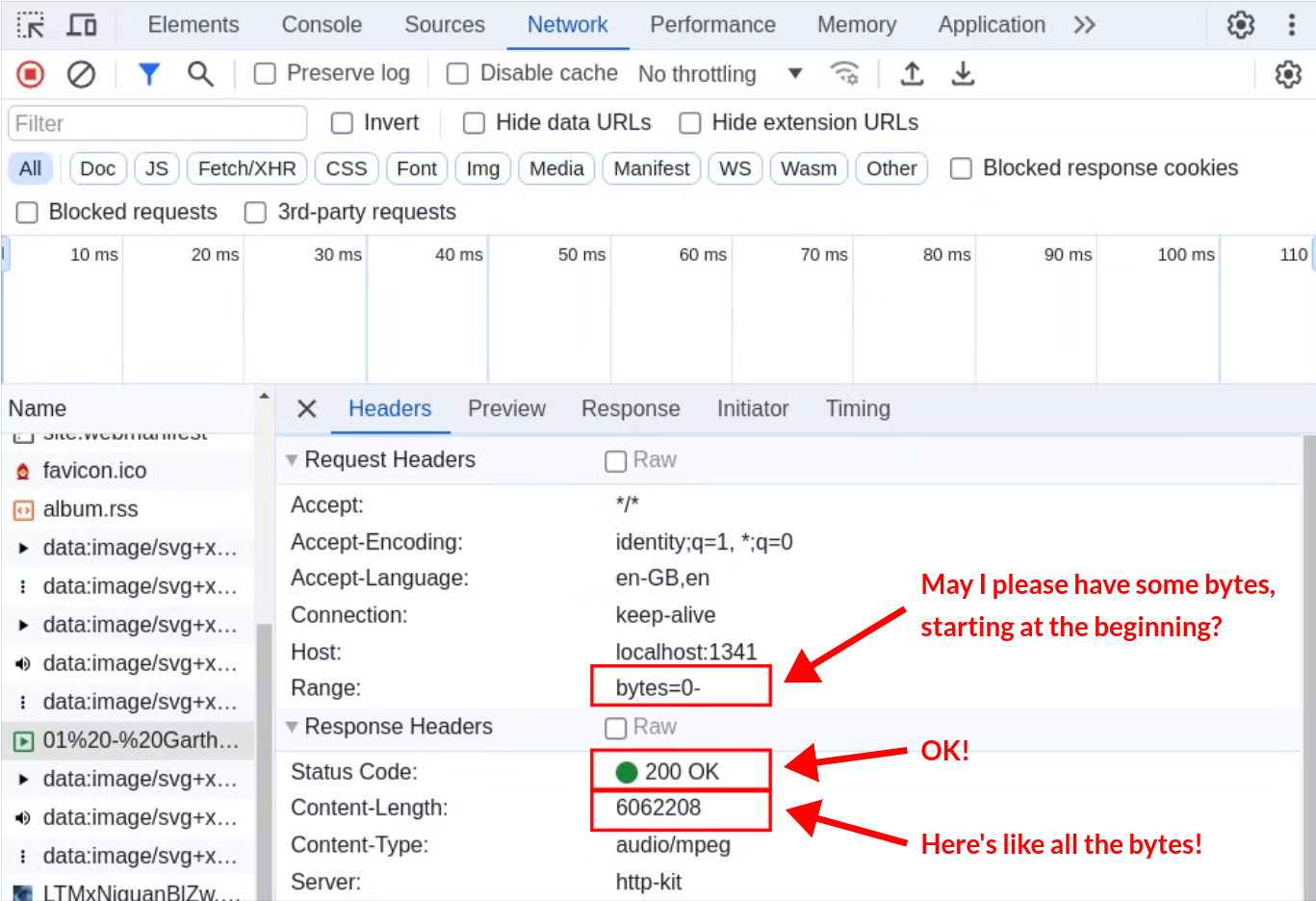

Opening the network tab, we see exactly what the browser asked for and exactly what the server responded:
First, the browser asks for some bytes, starting at the beginning of the file:
Range: bytes=0-
Since the end of the byte range isn't specified, the server is free to decide how many bytes to send back. Let's say we'll send back 1 MB (1048576 bytes). Our response should start by indicating that we're not returning the entire file, but rather just a part of it:
HTTP/1.1 206 Partial Content
Now we need to say which bytes we're returning, out of the total number of bytes in the file, as well as the length of the response, in bytes:
Content-Range: bytes 0-1048575/6062208
Content-length: 1048576
Note that the byte range is zero-indexed and inclusive on the end, meaning that the last byte we return is at index 1048575, whilst the content length is the number of bytes in the response body.
Finally, we need to let the client know what kind of range requests we support. We'll limit this to bytes:
Accept-Ranges: bytes
We must now flip Hegel on his head, as the saying goes, and move from lofty ideas to dirty, inconvenient material reality. In other words, we gotta implement range requests in our actual webserver.
Getting materialistic
Let's cast our minds back to what happens when we type
bb dev
in our terminal. According to our bb.edn:
{:deps {io.github.babashka/sci.nrepl
{:git/sha "2f8a9ed2d39a1b09d2b4d34d95494b56468f4a23"}
io.github.babashka/http-server
{:git/sha "b38c1f16ad2c618adae2c3b102a5520c261a7dd3"}}
:tasks
{http-server
{:doc "Starts http server for serving static files"
:requires ([babashka.http-server :as http])
:task (do (http/serve {:port 1341 :dir "public"})
(println "Serving static assets at http://localhost:1341"))}
browser-nrepl
{:doc "Start browser nREPL"
:requires ([sci.nrepl.browser-server :as bp])
:task (bp/start! {})}
-dev
{:depends [http-server browser-nrepl]}
dev
{:task (do (run '-dev {:parallel true})
(deref (promise)))}}}
OK, so it looks like io.github.babashka/http-server is the thing serving up our content. Let's go ahead and clone that so we can start digging through the code:
cd ~/code
git clone git@github.com:babashka/http-server.git
Tracing through bb.edn, we see that the webserver is started by calling babashka.http-server/serve with a config map containing the port and directory:
{ ;; ...
:tasks
{http-server
{:requires ([babashka.http-server :as http])
:task (do (http/serve {:port 1341 :dir "public"})
(println "Serving static assets at http://localhost:1341"))}
;; ...
}}
Let's see what's going on thereabouts in the http-server source code. Opening src/babashka/http_server.clj:
(defn serve
"Serves static assets using web server.
Options:
* `:dir` - directory from which to serve assets
* `:port` - port
* `:headers` - map of headers {key value}"
[{:keys [port]
:or {port 8090}
:as opts}]
(let [dir (or (:dir opts) ".")
opts (assoc opts :dir dir :port port)
dir (fs/path dir)]
(assert (fs/directory? dir) (str "The given dir `" dir "` is not a directory."))
(binding [*out* *err*]
(println (str "Serving assets at http://localhost:" (:port opts))))
(server/run-server (file-router dir (opts :headers)) opts)))
we see a bunch of ceremony before server/run-server is called with a file-router (whatever that is) and some opts; basically the port and directory we passed in from bb.edn. But what, pray tell, is this mystical server namespace?
(ns babashka.http-server
(:require [babashka.fs :as fs]
[clojure.string :as str]
#_[clojure.tools.cli :refer [parse-opts]]
[hiccup2.core :as html]
[babashka.cli :as cli]
[org.httpkit.server :as server])
(:import [java.net URLDecoder URLEncoder]))
Aha! 'Tis none other than http-kit, a "minimalist and efficient Ring-compatible HTTP client+server for Clojure". Looking at the documentation for
run-server, we see that the file-router thingy must return a Ring
handler, which is nothing more than a function that takes a request map as its argument and returns a response map. This function will be called by http-kit upon every request.
start-server returns a function that we can call to stop the
server.
Using this knowledge, let's dig into the file-router handler function:
(defn file-router [dir headers]
(fn [{:keys [uri]}]
(let [f (fs/path dir (str/replace-first (URLDecoder/decode uri) #"^/" ""))
index-file (fs/path f "index.html")]
(update (cond
(and (fs/directory? f) (fs/readable? index-file))
(body index-file)
(fs/directory? f)
(index dir f)
(fs/readable? f)
(body f)
(and (nil? (fs/extension f)) (fs/readable? (with-ext f ".html")))
(body (with-ext f ".html") headers)
:else
{:status 404 :body (str "Not found `" f "` in " dir)})
:headers (fn [response-headers]
(merge headers response-headers))))))
OK, what's going on here? Well, we're returning a function (i.e. the Ring handler) that basically grabs the path part of the URI (which will be relative to the directory named by our :dir option; in other words, soundcljoud/player/public) and asks a series of questions in a cond form:
- Does the path refer to a directory? If so, does there exist an
index.html that is readable by the webserver? - Otherwise, does the path refer to a directory (without an
index.html)? - Otherwise, does the path refer to a file that is readable by the webserver?
- Otherwise, does the path refer to a thing which, if we slap a
.html extension on the end, is a file that is readable by the webserver? - Why is this user wasting our time requesting stuff that we don't have?
Let's think for a second about which case we're interested in. Our browser is requesting /Garth Brooks/Fresh Horses/Garth Brooks - The Old Stuff.mp3, which is going to hit condition #3 in the list:
(fs/readable? f)
(body f)
Let's see what's going on with this body. And yes, I am aware that sounds like the title of a Pitbull) collabo with Nicki Minaj.
(defn- body
([path]
(body path {}))
([path headers]
{:headers (merge {"Content-Type" (ext-mime-type (fs/file-name path))} headers)
:body (fs/file path)}))
The only thing happening here is that the MIME
type of the file is being looked up using its extension and added as the Content-Type header, then the path itself is turned into a java.io.File with the babashka.fs/file function and added to the response map under the :body key. Presumably, http-kit will then take that java.io.File object and send the bytes back as the response body.
This looks very similar to what we will need to do, with the exception that instead of sending back all of the bytes in the file, we'll just want to send back those that were asked for.
Now that we know more or less where to start, let's fire up a REPL and start playing!
We aim to serve
The first thing we need to do is Ctrl-c our bb dev process, since we won't be able to start a webserver on port 1341 with that one in the way.
Next, let's open up http-server/src/babashka/http_server.clj in Emacs and start a REPL with C-c M-j (cider-jack-in-clj), choosing babashka as the command to start the REPL. Now, we load the buffer with C-c C-k (cider-load-buffer), and sign in relief as we're back in the REPL again.
For our first order of business, let's try starting a server from the REPL to serve up the files in the soundcljoud/player/public directory on port 1341, just like we had before:
(comment
(def dir "../soundcljoud/player/public") ; C-c C-v f c e
;; => #'babashka.http-server/dir
(def server
(server/run-server (file-router dir {})
{:dir dir, :port 1341}))
;; => #'babashka.http-server/server
)
OK, so we maybe have a webserver running. Let's try fetching a file to be sure:
: jmglov@alhana; curl http://localhost:1341/site.webmanifest
{
"name": "Soundcljoud",
"short_name": "Soundcljoud",
"icons": [
{
"src": "icons/android-chrome-192x192.png",
"sizes": "192x192",
"type": "image/png"
},
{
"src": "icons/android-chrome-512x512.png",
"sizes": "512x512",
"type": "image/png"
}
],
"theme_color": "#ffffff",
"background_color": "#ffffff",
"display": "standalone"
}
Looks good!
Hacking the cloud
The next step is making Soundcljoud use our local HTTP server instead of starting a new one. Back in soundcljoud/player, we open up bb.edn. Let's go ahead and change the deps first:
{:deps {io.github.babashka/sci.nrepl
{:git/sha "2f8a9ed2d39a1b09d2b4d34d95494b56468f4a23"}
io.github.babashka/http-server
{:git/sha "b38c1f16ad2c618adae2c3b102a5520c261a7dd3"}}
;; ...
}
For the io.github.babashka/http-server dep, we can change the value from a Git reference to a local directory like this:
{:deps {io.github.babashka/sci.nrepl
{:git/sha "2f8a9ed2d39a1b09d2b4d34d95494b56468f4a23"}
io.github.babashka/http-server
{:local/root "../../http-server"}}
;; ...
}
Next, we'll need to figure out how to start just the browser REPL. Let's take a look at the existing dev task that we've been using:
{ ;; ...
:tasks {http-server
{:doc "Starts http server for serving static files"
:requires ([babashka.http-server :as http])
:task (do
(http/serve {:port 1341 :dir "public"})
(println "Serving static assets at http://localhost:1341"))}
browser-nrepl
{:doc "Start browser nREPL"
:requires ([sci.nrepl.browser-server :as bp])
:task (bp/start! {})}
-dev
{:depends [http-server browser-nrepl]}
dev
{:task (do (run '-dev {:parallel true})
(deref (promise)))}}}
So dev just runs the -dev task in parallel, then derefs an empty promise to avoid exiting (calling deref on a promise will block the calling thread until the promise delivers, which an empty promise never will). The -dev task itself depends on http-server and browser-nrepl, but does nothing on its own.
Let's create a new task that follows this pattern but only starts the browser NREPL:
{ ;; ...
:tasks { ;; ...
dev
{:task (do (run '-dev {:parallel true})
(deref (promise)))}
browser
{:task (do (run 'browser-nrepl {:parallel true})
(deref (promise)))}}}
Now let's fire it up and see what happens:
: jmglov@alhana; bb browser
nREPL server started on port 1339...
Websocket server started on 1340...
Cool! If we now open http://localhost:1341/ in the browser, switch back to our open soundcljoud.cljs buffer and hit C-c l C, we see some very welcome log messages in our terminal:
nREPL server started on port 1339...
:msg "{:versions {\"scittle-nrepl\" {\"major\" \"0\", ..."

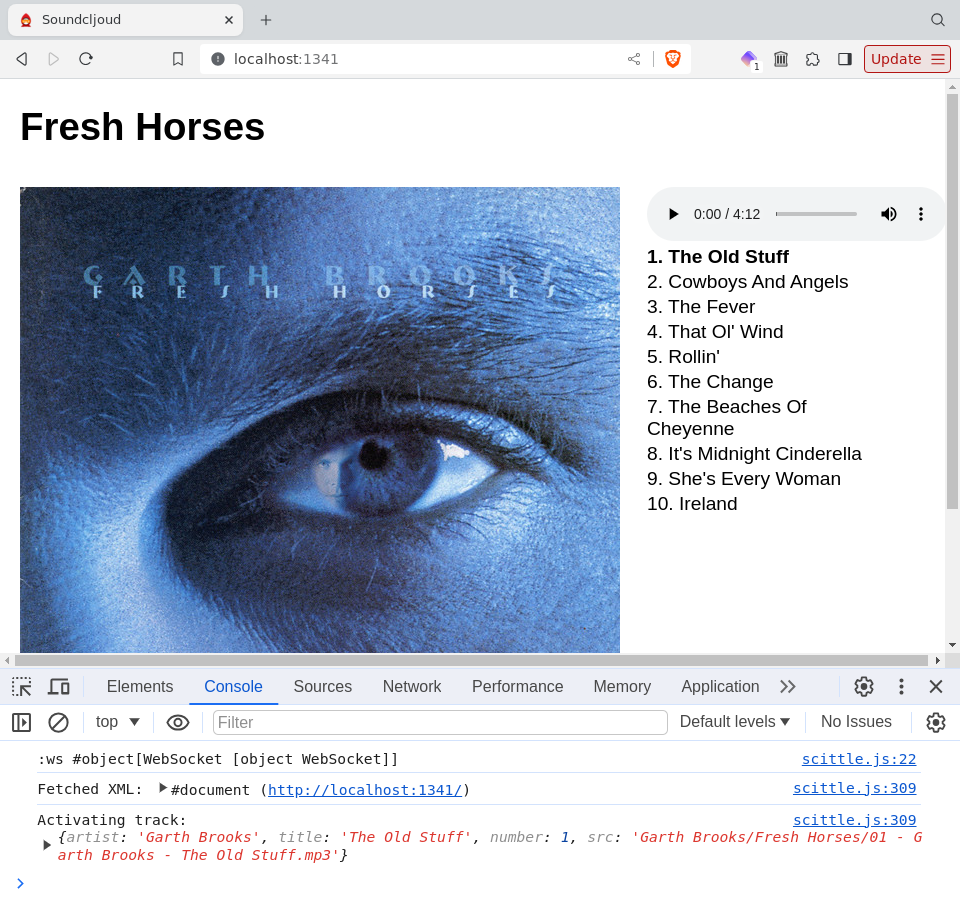

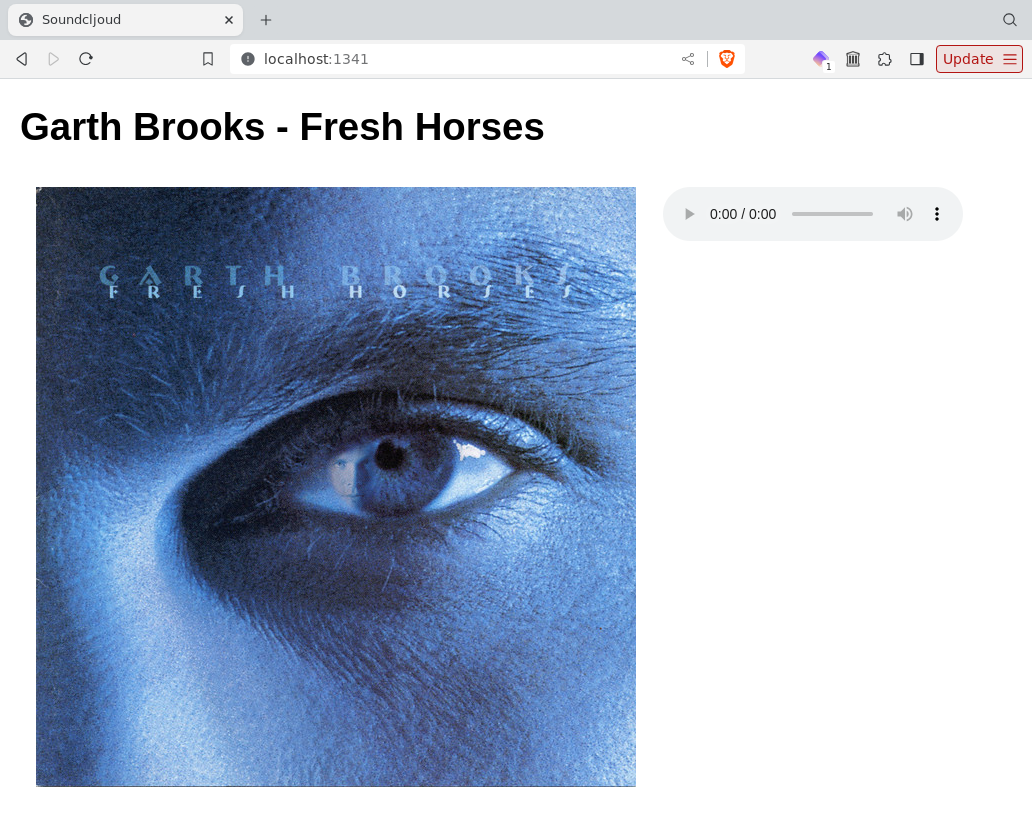

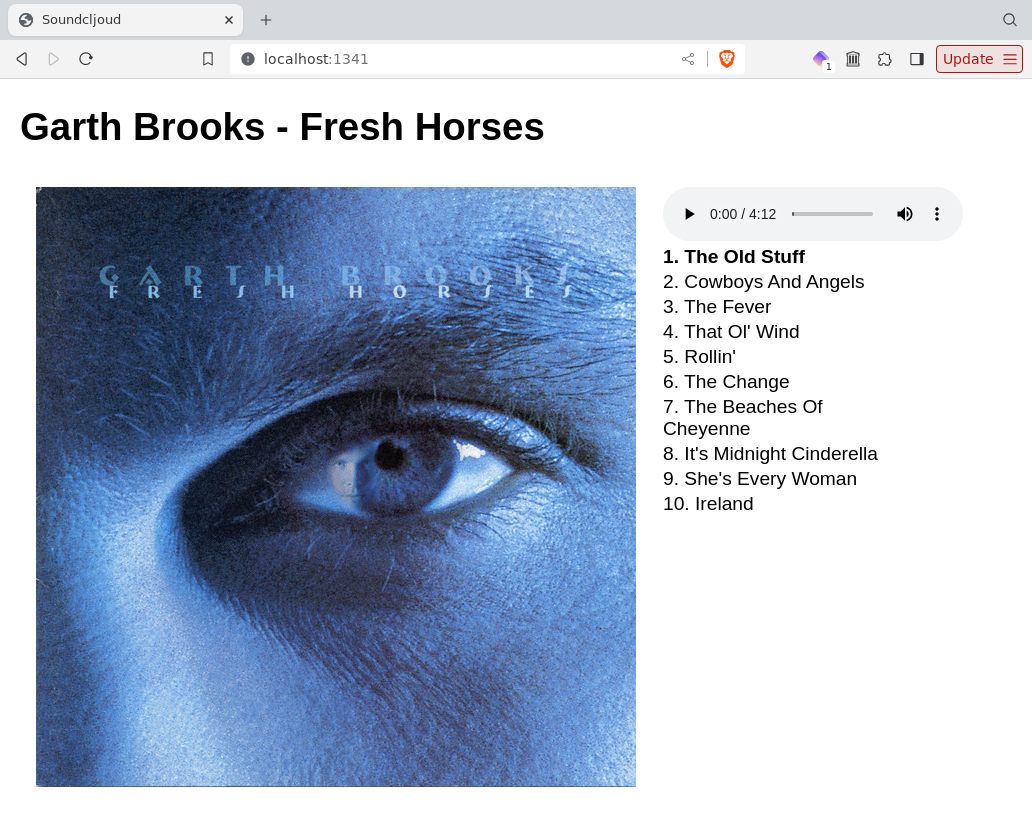

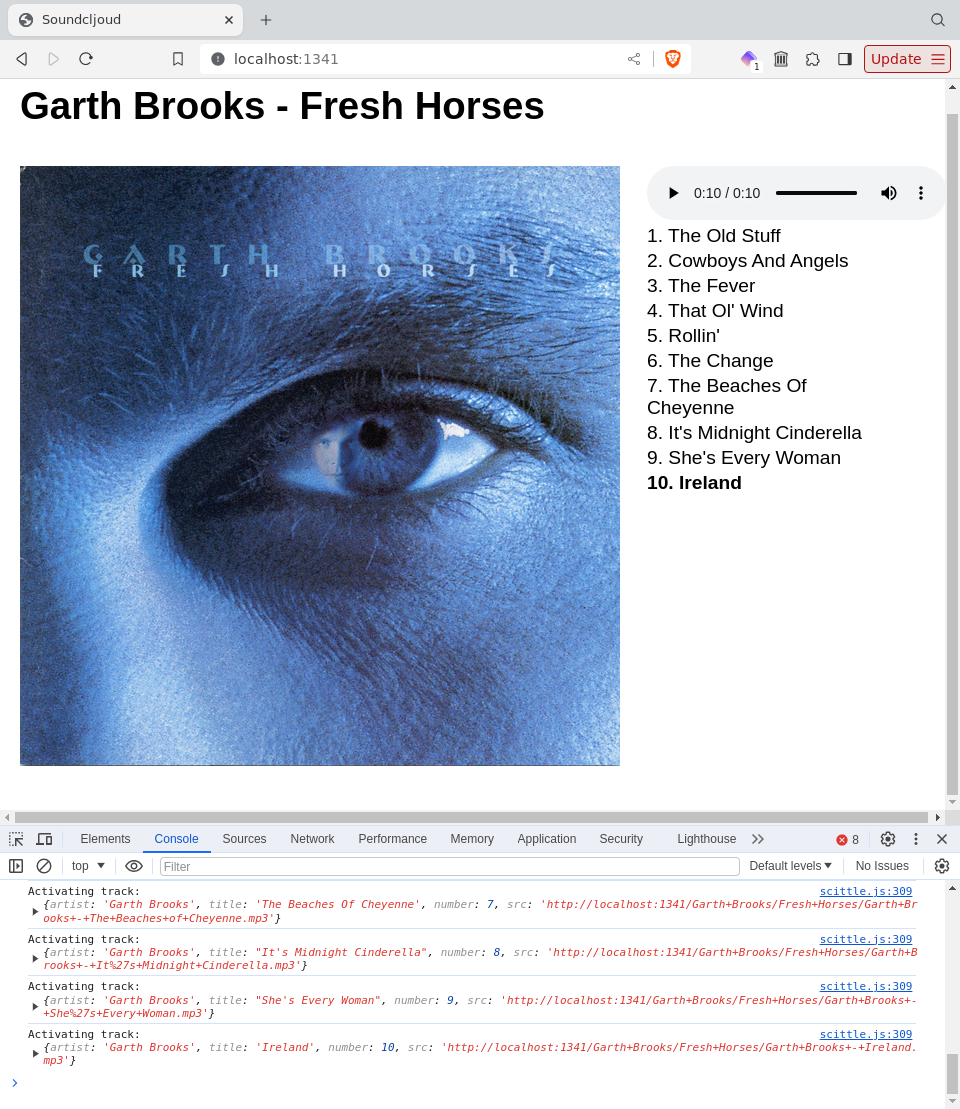

With baited breath, we evaluate the load-ui! form and... see the good ol' Eye of Garth! 🎉
This means Soundcljoud is using the http-server we're running from our REPL.
Homing in on the range
Switching back to the http-server/src/babashka/http_server.clj buffer, let's figure out how to do some REPL-driven development to implement handling range requests.
The first order of business might be giving ourselves a way to log the requests we're getting from the client. Let's create an atom at the top of the file for this very purpose:
(defonce state (atom {:requests [], :log []}))
I'm using defonce instead of plain 'ol def here because I tend to hit C-c C-k quite often whilst editing code, which not only causes the buffer to be re-evaluated, but also causes Emacs to ask me if I want to save my changes to the file, which is useful to keep code that's running in the system from drifting away from the code that's written in the source file. If I used def instead of defonce, my state atom would be reset every time I re-evaluate the buffer.
Now, we know that the function returned by file-router is a Ring handler, so let's jump there and see about how we can shove each request into our state atom:
(defn file-router [dir headers]
(fn [{:keys [uri]}]
;; ...
))
OK, at the moment, the handler function only cares about the :uri key in the request. Let's bind the entire request and then add it to the atom:
(defn file-router [dir headers]
(fn [{:keys [uri] :as req}]
(swap! state update :requests conj req)
;; ...
))
In order to test this, we need to restart the server since we made a change to the anonymous function returned by file-router. To do this, we stop the server by calling the function that server/run-server returned when we evaluated it, then evaluate the server/run-server expression again:
(comment
(server)
;; => nil
(def server
(server/run-server (file-router dir {})
{:dir dir, :port 1341}))
;; => #'babashka.http-server/server
)
Now, let's curl the manifest file again:
: jmglov@alhana; curl http://localhost:1341/site.webmanifest
{
"name": "Soundcljoud",
...
}
If we look at our state atom now, we can see that the request was successfully logged:
(comment
(:requests @state)
;; => [{:remote-addr "0:0:0:0:0:0:0:1",
;; :start-time 1004192760289113,
;; :headers
;; {"accept" "*/*", "host" "localhost:1341", "user-agent" "curl/8.4.0"},
;; :async-channel
;; #object[org.httpkit.server.AsyncChannel 0x44d028e7 "/[0:0:0:0:0:0:0:1]:1341<->/[0:0:0:0:0:0:0:1]:45890"],
;; :server-port 1341,
;; :content-length 0,
;; :websocket? false,
;; :content-type nil,
;; :character-encoding "utf8",
;; :uri "/site.webmanifest",
;; :server-name "localhost",
;; :query-string nil,
;; :body nil,
;; :scheme :http,
;; :request-method :get}]
)
OK, now that we've got some basic logging in place, let's get back to thinking about range requests. A good place to start is by looking at the requests we get from Soundcljoud when it loads a file, so let's pop back over to that browser window and click on a track.
Once we've done that, we can look at the request in our http-server REPL:
(comment
(->> @state
:requests
(map #(select-keys % [:start-time :headers :uri]))
last)
;; => {:start-time 1006716878994472,
;; :headers
;; {"range" "bytes=0-",
;; "sec-fetch-site" "same-origin",
;; "sec-ch-ua-mobile" "?0",
;; "host" "localhost:1341",
;; "user-agent"
;; "Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/120.0.0.0 Safari/537.36",
;; "sec-ch-ua"
;; "\"Not_A Brand\";v=\"8\", \"Chromium\";v=\"120\", \"Brave\";v=\"120\"",
;; "sec-ch-ua-platform" "\"Linux\"",
;; "referer" "http://localhost:1341/",
;; "connection" "keep-alive",
;; "accept" "*/*",
;; "accept-language" "en-GB,en",
;; "sec-fetch-dest" "audio",
;; "accept-encoding" "identity;q=1, *;q=0",
;; "sec-fetch-mode" "no-cors",
;; "sec-gpc" "1"},
;; :uri
;; "/Garth%20Brooks/Fresh%20Horses/01%20-%20Garth%20Brooks%20-%20The%20Old%20Stuff.mp3"}
)
The interesting bit is this header right here, which is the thing that tells us that what we're dealing with here is a range request:
;; :headers
;; {"range" "bytes=0-",
Remember those 5 questions we asked back in file-router?
- Does the path refer to a directory? If so, does there exist an
index.html that is readable by the webserver? - Otherwise, does the path refer to a directory (without an
index.html)? - Otherwise, does the path refer to a file that is readable by the webserver?
- Otherwise, does the path refer to a thing which, if we slap a
.html extension on the end, is a file that is readable by the webserver? - Why is this user wasting our time requesting stuff that we don't have?
Well, let's insert a new question in there as #3, and bump the rest down:
- Does the path refer to a directory? If so, does there exist an
index.html that is readable by the webserver? - Otherwise, does the path refer to a directory (without an
index.html)? - Otherwise, does the path refer to a file that is readable by the webserver and we have a
range header in our request? - Otherwise, does the path refer to a file that is readable by the webserver?
- Otherwise, does the path refer to a thing which, if we slap a
.html extension on the end, is a file that is readable by the webserver? - Why is this user wasting our time requesting stuff that we don't have?
Let's write that in Clojure instead of English:
(defn file-router [dir headers]
(fn [{:keys [uri] :as req}]
(swap! state update :requests conj req)
(let [f (fs/path dir (str/replace-first (URLDecoder/decode uri) #"^/" ""))
index-file (fs/path f "index.html")]
(update (cond
(and (fs/directory? f) (fs/readable? index-file))
(body index-file)
(fs/directory? f)
(index dir f)
;; 👇👇👇👇👇👇👇👇👇👇👇👇👇👇👇👇👇👇👇👇👇👇👇👇👇👇
(and (fs/readable? f) (contains? (:headers req) "range"))
(do
(swap! state update :log conj "Handling range request")
(body f))
;; 👆👆👆👆👆👆👆👆👆👆👆👆👆👆👆👆👆👆👆👆👆👆👆👆👆👆
(fs/readable? f)
(body f)
(and (nil? (fs/extension f)) (fs/readable? (with-ext f ".html")))
(body (with-ext f ".html") headers)
:else
{:status 404 :body (str "Not found `" f "` in " dir)})
:headers (fn [response-headers]
(merge headers response-headers))))))
Now we can try this out. Unfortunately, we need to restart the server again to have it pick up the new code. The issue is that file-handler is returning an anonymous function, so when we edit the code and re-evaluate the buffer, we're not updating the copy of the function that http-kit is using as the request handler, we're updating file-handler itself, so the next time it's called, it will return a new handler function. In the writing of this blog, I did try pulling the anonymous function out and giving it a name, which I expected to fix this issue, but that didn't work, for reasons that aren't clear to me (maybe because http-kit is running the server on a different thread?). Yell at me in the Clojurians Slack thread if you know how to do this. 😅
Anyway, let's stop the server as usual:
(comment
(server)
;; => nil
)
And now, since we know we're going to need to do this dance every time we make changes to the code, let's write a little convenience function:
(comment
(defn restart-server []
(when (:server @state)
((:server @state)))
(reset! state
{:requests []
:log []
:server
(server/run-server (file-router dir {})
{:dir dir, :port 1341})}))
;; => #'babashka.http-server/restart-server
)
Now we can just call restart-server whenever we need to, well, restart the server. Let's do so now:
(comment
(restart-server)
;; => {:requests [],
;; :server
;; #object[clojure.lang.AFunction$1 0x3ece031a "clojure.lang.AFunction$1@3ece031a"]}
)
Having done this, let's pop back over to Soundcljoud and click on another track, then inspect the log to make sure we see the message we expect:
(comment
(->> @state
:log
last)
;; => "Handling range request"
)
Looks good! Except for the fact that we're still returning the entire file in the request body, of course. Still, the key to REPL-driven development is rapidly iterating, so let's take that next iteration now!
What's in a range?
Since we've captured the request, let's go ahead and pull the range header out so we can play with it:
(comment
(-> (:requests @state) last (get-in [:headers "range"]))
;; => "bytes=0-"
(def range-header *1)
;; => #'babashka.http-server/range-header
(let [[start end] (-> range-header
(str/replace #"^bytes=" "")
(str/split #"-"))]
[start end])
;; => ["0" nil]
)
The header parsing thing looks like a good thing to make into a function:
(defn- parse-range-header [range-header]
(map #(when % (Long/parseLong %))
(-> range-header
(str/replace #"^bytes=" "")
(str/split #"-"))))
(comment
(parse-range-header range-header)
;; => (0)
)
OK, now let's shift gears and figure out how to return a specific byte range from a file. After much searching, I found a magical way to seek to an arbitrary location in a file in Java (and hence Clojure, through the magic of interop). Every FileInputStream has an associated FileChannel, and this FileChannel has a helpful position() instance method, which sets the position in the FileChannel for subsequent read operations on the channel.
Now, how to perform a read operation on a FileInputStream? Looking at the documentation, this method looks quite useful:
read
public int read(byte[] b)
throws IOException
Reads up to b.length bytes of data from this input stream into an array of bytes. This method blocks until some input is available.
And how do we create a byte[] array of an arbitrary size in Clojure? Why, by using the aptly-named byte-array function, naturally! 😀
Let's try this out, using our helpful site.webmanifest file:
(comment
(let [arr (byte-array 32)]
(with-open [is (java.io.FileInputStream. manifest-file)]
(-> is .getChannel (.position 0))
(.read is arr))
(String. arr))
;; => "{\n \"name\": \"Soundcljoud\",\n "
(let [arr (byte-array 16)]
(with-open [is (java.io.FileInputStream. manifest-file)]
(-> is .getChannel (.position 14))
(.read is arr))
(String. arr))
;; => "\"Soundcljoud\",\n "
)
Now we're cooking with gas! 💥
Let's see if we can make a nice function out of this:
(defn- read-bytes [f [start end]]
(let [arr (byte-array (- end start))]
(with-open [is (java.io.FileInputStream. f)]
(-> is .getChannel (.position start))
(.read is arr))
arr))
(comment
(-> (read-bytes manifest-file [0 31])
(String.))
;; => "{\n \"name\": \"Soundcljoud\",\n "
(-> (read-bytes manifest-file [14 29])
(String.))
;; => "\"Soundcljoud\",\n "
)
There's one issue remaining, though. Remember the range header we got from Soundcljoud?
(comment
range-header
;; => "bytes=0-"
(parse-range-header range-header)
;; => (0)
)
We have a start, but not an end. 😱
Let's think about what we want to do in this case. The client is effectively saying, "give me as many bytes as you feel inclined to do, starting at this offset in the file". So how many bytes are we inclined to hand out willy-nilly? I dunno, how about 1 mega of them bytes?
(defn- read-bytes [f [start end]]
(let [end (or end (dec (+ start (* 1024 1024)))
arr (byte-array (- end start))]
(with-open [is (java.io.FileInputStream. f)]
(-> is .getChannel (.position start))
(.read is arr))
arr))
(comment
(-> (read-bytes manifest-file [0 31])
(String.)) ; ⚠ OMG wait don't evaluate this for the love of Pete!
)
Yeah, so you really don't want to evaluate that last read-bytes expression. "And why's that," you might ask? "Well," I might answer, "cast your mind back to the Java documentation":
read
public int read(byte[] b)
throws IOException
Reads up to b.length bytes of data from this input stream into an array of bytes. 👉 This method blocks until some input is available. 👈
"And how do you know this is a problem?" you might query. "Well," I might respond, "um, just 'cuz? I mean... I certainly didn't evaluate this and hang my REPL process and then have to forcibly kill Emacs or anything, because that would be a rookie mistake. Haha." And then I might laugh nervously and quickly change the subject. "So, how 'bout them Yankees?" I might mutter, maybe even looking at my shoes.
So blerg, what to do, what to do?
Well, we do know (or at least can know) how many bytes are in the file, so maybe we don't read past the end of the file? Amazing insights you get in this here blog, innit?
(defn- read-bytes [f [start end]]
(let [end (or end (dec (min (fs/size f)
(+ start (* 1024 1024)))))
arr (byte-array (- end start))]
(with-open [is (java.io.FileInputStream. f)]
(-> is .getChannel (.position start))
(.read is arr))
arr))
(comment
(let [f manifest-file
end nil
end (or end (dec (min (fs/size f) (* 1024 1024))))]
end)
;; => 457
;; Should be safe to do this... 🙈
(-> (read-bytes manifest-file [0 31])
(String.))
;; => "{\n \"name\": \"Soundcljoud\",\n "
(-> (read-bytes manifest-file [14 29])
(String.))
;; => "\"Soundcljoud\",\n "
;; Never in doubt... 😌
)
OK, we're making some progress here. In fact, it seems that we have most of the pieces we'll need to actually fulfil a range request, so let's see about sticking them together in a reasonable way.
How do you respond?
Let's review what the response to a range request is supposed to look like:
HTTP/1.1 206 Partial Content
Accept-Ranges: bytes
Content-Length: 1048576
Content-Range: bytes 0-1048575/5943424
Content-Type: audio/mpeg
At the moment, we're just using the body function to respond to range requests:
(defn file-router [dir headers]
;; ...
(cond
;; ...
(and (fs/readable? f) (contains? (:headers req) "range"))
(do
(swap! state update :log conj "Handling range request")
(body f))
;; ...
)
;; ...
)
And body just chucks the file into a map with some headers:
(defn- body
([path]
(body path {}))
([path headers]
{:headers (merge {"Content-Type" (ext-mime-type (fs/file-name path))} headers)
:body (fs/file path)}))
Let's follow suit. Since http-kit is so magical and wonderful, we'll go out on a limb and make the assumption that if we just stuff our byte array into the response body, http-kit will do The Right Thing™.
(defn- byte-range
([path request-headers]
(byte-range path request-headers {}))
([path request-headers response-headers]
(let [f (fs/file path)
[start end
:as requested-range] (parse-range-header (request-headers "range"))
arr (read-bytes f requested-range)
num-bytes-read (count arr)]
{:status 206
:headers (merge {"Content-Type" (ext-mime-type (fs/file-name path))
"Accept-Ranges" "bytes"
"Content-Length" num-bytes-read
"Content-Range" (format "bytes %d-%d/%d"
start
(+ start num-bytes-read)
(fs/size f))}
response-headers)
:body arr})))
(comment
(byte-range manifest-file {"range" "bytes=0-"})
;; => {:status 206,
;; :headers
;; {"Content-Type" nil,
;; "Accept-Ranges" "bytes",
;; "Content-Length" 458,
;; "Content-Range" "bytes 0-457/458"},
;; :body
;; [123, 10, 32, 32, 32, 32, 34, 110, 97, 109, 101, 34, 58, 32, 34, 83, 111, 117,
;; 110, 100, 99, 108, 106, 111, 117, 100, 34, 44, 10, 32, 32, 32, 32, 34, 115,
;; 104, 111, 114, 116, 95, 110, 97, 109, 101, 34, 58, 32, 34, 83, 111, 117, 110,
;; 100, 99, 108, 106, 111, 117, 100, 34, 44, 10, 32, 32, 32, 32, 34, 105, 99,
;; 111, 110, 115, 34, 58, 32, 91, 10, 32, 32, 32, 32, 32, 32, 32, 32, 123, 10,
;; 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 34, 115, 114, 99, 34, 58, 32,
;; 34, 105, 99, 111, 110, 115, 47, 97, 110, 100, 114, 111, 105, 100, 45, 99,
;; 104, 114, 111, 109, 101, 45, 49, 57, 50, 120, 49, 57, 50, 46, 112, 110, 103,
;; 34, 44, 10, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 34, 115, 105,
;; 122, 101, 115, 34, 58, 32, 34, 49, 57, 50, 120, 49, 57, 50, 34, 44, 10, 32,
;; 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 34, 116, 121, 112, 101, 34, 58,
;; 32, 34, 105, 109, 97, 103, 101, 47, 112, 110, 103, 34, 10, 32, 32, 32, 32,
;; 32, 32, 32, 32, 125, 44, 10, 32, 32, 32, 32, 32, 32, 32, 32, 123, 10, 32, 32,
;; 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 34, 115, 114, 99, 34, 58, 32, 34,
;; 105, 99, 111, 110, 115, 47, 97, 110, 100, 114, 111, 105, 100, 45, 99, 104,
;; 114, 111, 109, 101, 45, 53, 49, 50, 120, 53, 49, 50, 46, 112, 110, 103, 34,
;; 44, 10, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 34, 115, 105, 122,
;; 101, 115, 34, 58, 32, 34, 53, 49, 50, 120, 53, 49, 50, 34, 44, 10, 32, 32,
;; 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 34, 116, 121, 112, 101, 34, 58, 32,
;; 34, 105, 109, 97, 103, 101, 47, 112, 110, 103, 34, 10, 32, 32, 32, 32, 32,
;; 32, 32, 32, 125, 10, 32, 32, 32, 32, 93, 44, 10, 32, 32, 32, 32, 34, 116,
;; 104, 101, 109, 101, 95, 99, 111, 108, 111, 114, 34, 58, 32, 34, 35, 102, 102,
;; 102, 102, 102, 102, 34, 44, 10, 32, 32, 32, 32, 34, 98, 97, 99, 107, 103,
;; 114, 111, 117, 110, 100, 95, 99, 111, 108, 111, 114, 34, 58, 32, 34, 35, 102,
;; 102, 102, 102, 102, 102, 34, 44, 10, 32, 32, 32, 32, 34, 100, 105, 115, 112,
;; 108, 97, 121, 34, 58, 32, 34, 115, 116, 97, 110, 100, 97, 108, 111, 110, 101,
;; 34, 10, 125, 10]}
)
That looks fairly reasonable. Let's now complete the plumbing so when we turn on the tap of range requests, we get a delicious stream of ice cold, alpine spring fed responses flowing back:
(defn file-router [dir headers]
;; ...
(cond
;; ...
(and (fs/readable? f) (contains? (:headers req) "range"))
(do
(swap! state update :log conj "Handling range request")
(byte-range f (:headers req)))
;; ...
)
;; ...
)
(comment
((file-router dir {}) {:headers {"range" "bytes=0-"}
:uri "/site.webmanifest"})
;; => {:status 206,
;; :headers
;; {"Content-Type" nil,
;; "Accept-Ranges" "bytes",
;; "Content-Length" 458,
;; "Content-Range" "bytes 0-457/458"},
;; :body
;; [123, 10, 32, 32, 32, 32, 34, 110, 97, 109, 101, 34, 58, 32, 34, 83, 111, 117,
;; 110, 100, 99, 108, 106, 111, 117, 100, 34, 44, 10, 32, 32, 32, 32, 34, 115,
;; 104, 111, 114, 116, 95, 110, 97, 109, 101, 34, 58, 32, 34, 83, 111, 117, 110,
;; 100, 99, 108, 106, 111, 117, 100, 34, 44, 10, 32, 32, 32, 32, 34, 105, 99,
;; 111, 110, 115, 34, 58, 32, 91, 10, 32, 32, 32, 32, 32, 32, 32, 32, 123, 10,
;; 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 34, 115, 114, 99, 34, 58, 32,
;; 34, 105, 99, 111, 110, 115, 47, 97, 110, 100, 114, 111, 105, 100, 45, 99,
;; 104, 114, 111, 109, 101, 45, 49, 57, 50, 120, 49, 57, 50, 46, 112, 110, 103,
;; 34, 44, 10, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 34, 115, 105,
;; 122, 101, 115, 34, 58, 32, 34, 49, 57, 50, 120, 49, 57, 50, 34, 44, 10, 32,
;; 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 34, 116, 121, 112, 101, 34, 58,
;; 32, 34, 105, 109, 97, 103, 101, 47, 112, 110, 103, 34, 10, 32, 32, 32, 32,
;; 32, 32, 32, 32, 125, 44, 10, 32, 32, 32, 32, 32, 32, 32, 32, 123, 10, 32, 32,
;; 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 34, 115, 114, 99, 34, 58, 32, 34,
;; 105, 99, 111, 110, 115, 47, 97, 110, 100, 114, 111, 105, 100, 45, 99, 104,
;; 114, 111, 109, 101, 45, 53, 49, 50, 120, 53, 49, 50, 46, 112, 110, 103, 34,
;; 44, 10, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 34, 115, 105, 122,
;; 101, 115, 34, 58, 32, 34, 53, 49, 50, 120, 53, 49, 50, 34, 44, 10, 32, 32,
;; 32, 32, 32, 32, 32, 32, 32, 32, 32, 32, 34, 116, 121, 112, 101, 34, 58, 32,
;; 34, 105, 109, 97, 103, 101, 47, 112, 110, 103, 34, 10, 32, 32, 32, 32, 32,
;; 32, 32, 32, 125, 10, 32, 32, 32, 32, 93, 44, 10, 32, 32, 32, 32, 34, 116,
;; 104, 101, 109, 101, 95, 99, 111, 108, 111, 114, 34, 58, 32, 34, 35, 102, 102,
;; 102, 102, 102, 102, 34, 44, 10, 32, 32, 32, 32, 34, 98, 97, 99, 107, 103,
;; 114, 111, 117, 110, 100, 95, 99, 111, 108, 111, 114, 34, 58, 32, 34, 35, 102,
;; 102, 102, 102, 102, 102, 34, 44, 10, 32, 32, 32, 32, 34, 100, 105, 115, 112,
;; 108, 97, 121, 34, 58, 32, 34, 115, 116, 97, 110, 100, 97, 108, 111, 110, 101,
;; 34, 10, 125, 10]}
)
Looks great... except for the Content-Type: nil bit, since our server has no clue what a .webmanifest extension portends, but who cares about such trivial details, since we're not gonna be getting range requests for non-media files anyway. Plus, a standard request for that file does the same thing:
(comment
((file-router dir {}) {:headers {}
:uri "/site.webmanifest"})
;; => {:headers {"Content-Type" nil},
;; :body
;; #object[java.io.File 0x659969c9 "../soundcljoud/player/public/site.webmanifest"]}
)
🤷
Before we break out the 🍾 though, let's try this in the wild. And before we try this in the wild, it probably behoves us—at least, I feel rather behoved, and it's my blog, so I'm going to follow this deep sense of behoval where it leads—to log responses as well as requests, so let's make one last minor change to good 'ol file-router:
(defn file-router [dir headers]
(fn [{:keys [uri] :as req}]
;; 👉 Move the state swappage from here...
(let [f (fs/path dir (str/replace-first (URLDecoder/decode uri) #"^/" ""))
index-file (fs/path f "index.html")
res
(update (cond
(and (fs/directory? f) (fs/readable? index-file))
(body index-file)
(fs/directory? f)
(index dir f)
(and (fs/readable? f) (contains? (:headers req) "range"))
(do
(swap! state update :log conj "Handling range request")
(byte-range f (:headers req)))
(fs/readable? f)
(body f)
(and (nil? (fs/extension f)) (fs/readable? (with-ext f ".html")))
(body (with-ext f ".html") headers)
:else
{:status 404 :body (str "Not found `" f "` in " dir)})
:headers (fn [response-headers]
(merge headers response-headers)))]
;; ...to here 👇
(swap! state
update :requests
conj {:request req, :response (dissoc res :body)})
res)))
I'm the one that put the Range in the Rover
Casting our minds back to the last post in this potentially infinite sequence
of posts, we recall that Soundcljoud was unable to seek in the audio file. Let's repeat this experience by jumping over to soundcljoud/player/public/soundcljoud.cljs:
(comment
(-> (get-el "audio")
(.-seekable)
(.-length))
;; => 1
(let [s (-> (get-el "audio")
(.-seekable))]
[(.start s 0) (.end s 0)])
;; => [0 0]
)
This is what we expected, since we haven't restarted the server to apply our changes. Let's do that now (back in our http-server REPL):
(comment
(restart-server)
;; => {:requests [],
;; :log [],
;; :server
;; #object[clojure.lang.AFunction$1 0x2d75d828 "clojure.lang.AFunction$1@2d75d828"]}
)
Now we can click on another track in Soundcljoud and see what happens. 😬
OK, nothing blew up. Let's look at the request in the http-server logs:
(comment
(->> (:requests @state)
(filter #(str/ends-with? (get-in % [:request :uri]) ".mp3"))
(map (fn [{:keys [request response]}]
{:request {:uri (:uri request)
:headers (select-keys (:headers request)
["range"])}
:response response})))
;; => ({:request
;; {:uri
;; "/Garth%20Brooks/Fresh%20Horses/Garth%20Brooks%20-%20It%27s%20Midnight%20Cinderella.mp3",
;; :headers {"range" "bytes=0-"}},
;; :response
;; {:status 206,
;; :headers
;; {"Content-Type" "audio/mpeg",
;; "Accept-Ranges" "bytes",
;; "Content-Length" 1048576,
;; "Content-Range" "bytes 0-1048575/3426432"}}})
)
So far, so good. But if we now seek, can we find? Let's ask in our Soundcljoud REPL:
(comment
(let [seekable (-> (get-el "audio") (.-seekable))]
(->> (.-length seekable)
range
(map (fn [i]
[(.start seekable i) (.end seekable i)]))))
;; => ([0 142.654694])
)
And if we actually click play? OMG we hear the sweet sweet sounds of a steel guitar! And if we seek forward in the track? Garth sings! Let's just check in with http-server one last time to see what it thinks:
(comment
(->> (:requests @state)
(filter #(str/ends-with? (get-in % [:request :uri]) ".mp3"))
(map (fn [{:keys [request response]}]
{:request {:uri (:uri request)
:headers (select-keys (:headers request)
["range"])}
:response response})))
;; => ({:request
;; {:uri
;; "/Garth%20Brooks/Fresh%20Horses/Garth%20Brooks%20-%20It%27s%20Midnight%20Cinderella.mp3",
;; :headers {"range" "bytes=0-"}},
;; :response
;; {:status 206,
;; :headers
;; {"Content-Type" "audio/mpeg",
;; "Accept-Ranges" "bytes",
;; "Content-Length" 1048575,
;; "Content-Range" "bytes 0-1048575/3426432"}}}
;; {:request
;; {:uri
;; "/Garth%20Brooks/Fresh%20Horses/Garth%20Brooks%20-%20It%27s%20Midnight%20Cinderella.mp3",
;; :headers {"range" "bytes=0-"}},
;; :response
;; {:status 206,
;; :headers
;; {"Content-Type" "audio/mpeg",
;; "Accept-Ranges" "bytes",
;; "Content-Length" 1048575,
;; "Content-Range" "bytes 0-1048575/3426432"}}}
;; {:request
;; {:uri
;; "/Garth%20Brooks/Fresh%20Horses/Garth%20Brooks%20-%20It%27s%20Midnight%20Cinderella.mp3",
;; :headers {"range" "bytes=1048575-"}},
;; :response
;; {:status 206,
;; :headers
;; {"Content-Type" "audio/mpeg",
;; "Accept-Ranges" "bytes",
;; "Content-Length" 1048575,
;; "Content-Range" "bytes 1048575-2097150/3426432"}}}
;; {:request
;; {:uri
;; "/Garth%20Brooks/Fresh%20Horses/Garth%20Brooks%20-%20It%27s%20Midnight%20Cinderella.mp3",
;; :headers {"range" "bytes=2097150-"}},
;; :response
;; {:status 206,
;; :headers
;; {"Content-Type" "audio/mpeg",
;; "Accept-Ranges" "bytes",
;; "Content-Length" 1048575,
;; "Content-Range" "bytes 2097150-3145725/3426432"}}}
;; {:request
;; {:uri
;; "/Garth%20Brooks/Fresh%20Horses/Garth%20Brooks%20-%20It%27s%20Midnight%20Cinderella.mp3",
;; :headers {"range" "bytes=3145725-"}},
;; :response
;; {:status 206,
;; :headers
;; {"Content-Type" "audio/mpeg",
;; "Accept-Ranges" "bytes",
;; "Content-Length" 280706,
;; "Content-Range" "bytes 3145725-3426431/3426432"}}})
)
Now that, my friends, smells like the sweet sweet smell of...
Ah... it's been a while since I've been able to use that lovely image. 🌅
Is this the end?
Well... the fact that I'm asking this rhetorical question points to the answer likely being "no". 😅
And in fact it isn't the end, because I feel (perhaps arrogantly so) that this range support could be useful to others using babashka.http-server, so I should probably open up a pull request for the borkiest of
dudes to review. I'll quickly fork http-server on Github, then update my remotes in magit to make origin point to git@github.com:jmglov/http-server.git and upstream point to git@github.com:babashka/http-server.git, stash my changes, create a range-requests branch, then pop the stash.
I doubt Señor Borkdude will be terribly impressed by my Rich
comment and state atom, so I'd better go ahead and remove that nonsense before committing. I'll open a feature
request on the Github project as well, since I know this is how Borkdude prefers to work.
With this, I have a fairly minimal commit that I'm ready to subject to the slings and arrows of outrageous fortune that are part of any Borkdude code review:
range-requests a87a841e02d362ae8dc346153b166d28882c3c6e
Author: Josh Glover <jmglov@jmglov.net>
AuthorDate: Tue Aug 13 14:18:47 2024 +0200
Commit: Josh Glover <jmglov@jmglov.net>
CommitDate: Tue Aug 13 17:08:31 2024 +0200
Support range requests
2 files changed, 42 insertions(+)
CHANGELOG.md | 4 ++++
src/babashka/http_server.clj | 38 ++++++++++++++++++++++++++++++++++++++
modified CHANGELOG.md
@@ -2,6 +2,10 @@
[Http-server](https://github.com/babashka/http-server): Serve static assets with [babashka](https://babashka.org/)
+## Unreleased
+
+- [#16](https://github.com/babashka/http-server/issues/16): support range requests
+
## 0.1.13
- [#13](https://github.com/babashka/http-server/issues/13): add an ending slash to the dir link, and don't encode the slashes ([@KDr2](https://github.com/KDr2))
modified src/babashka/http_server.clj
@@ -165,6 +165,41 @@
{:headers (merge {"Content-Type" (ext-mime-type (fs/file-name path))} headers)
:body (fs/file path)}))
+(defn- parse-range-header [range-header]
+ (map #(when % (Long/parseLong %))
+ (-> range-header
+ (str/replace #"^bytes=" "")
+ (str/split #"-"))))
+
+(defn- read-bytes [f [start end]]
+ (let [end (or end (dec (min (fs/size f)
+ (+ start (* 1024 1024)))))
+ arr (byte-array (- end start))]
+ (with-open [is (java.io.FileInputStream. f)]
+ (-> is .getChannel (.position start))
+ (.read is arr))
+ arr))
+
+(defn- byte-range
+ ([path request-headers]
+ (byte-range path request-headers {}))
+ ([path request-headers response-headers]
+ (let [f (fs/file path)
+ [start end
+ :as requested-range] (parse-range-header (request-headers "range"))
+ arr (read-bytes f requested-range)
+ num-bytes-read (count arr)]
+ {:status 206
+ :headers (merge {"Content-Type" (ext-mime-type (fs/file-name path))
+ "Accept-Ranges" "bytes"
+ "Content-Length" num-bytes-read
+ "Content-Range" (format "bytes %d-%d/%d"
+ start
+ (+ start num-bytes-read)
+ (fs/size f))}
+ response-headers)
+ :body arr})))
+
(defn- with-ext [path ext]
(fs/path (fs/parent path) (str (fs/file-name path) ext)))
@@ -179,6 +214,9 @@
(fs/directory? f)
(index dir f)
+ (and (fs/readable? f) (contains? (:headers req) "range"))
+ (byte-range f (:headers req))
+
(fs/readable? f)
(body f)
Wish me well, folks! If I'm not heard from again, you'll know that my pull
request was found to be sub-par and I was sent to Java Jail to work on an enterprise workflow management system. 😭
OK but now are we done?
Soundcljoud has clearly now implemented the critical functionality of Soundcloud, so I could call it a day, but I'm loathe to do that when I could instead extend it to be the best podcast player that ever was! Maybe I'll rebrand it OverClj... or better yet, CljerCast! VCs, get your wallets ready and stay posted for the next instalment of the exciting Soundcljoud series, right here on jmglov.net!
Previously on Soundcljoud:
Photo credits
What's Going on with that Body cover art:
]]>
